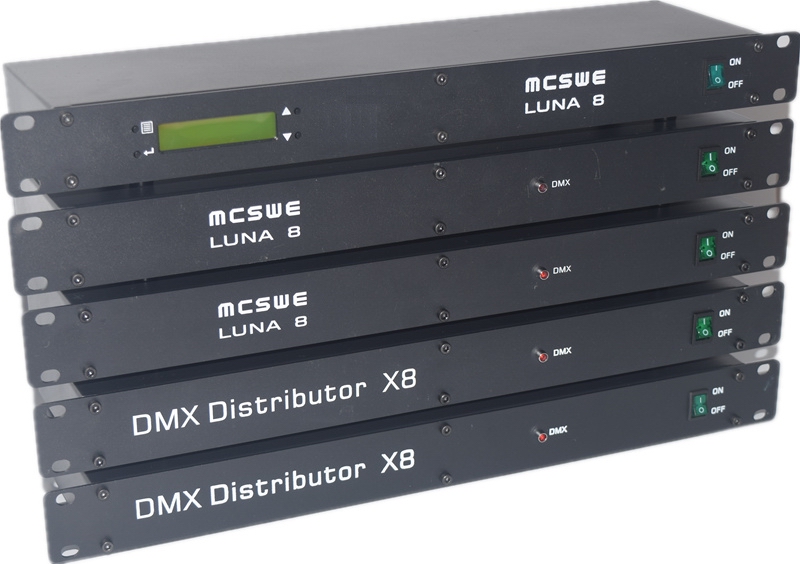

Stage lighting DMX512 to Art Net network controller 4096 channel

Support all entities to enter the DMX signal to the controller to decode the 3D software transmitted to the computer.

A: DMX signal input function: external physical console to the computer 3D software to simulate the operation of lamps:

1. Support WYSIWYG software external entity console into the computer 3D simulation, lighting design essential. (Available for download)

2. Support Solid Console for Sunlite's Magic 3D Easy View software!
   Easy View 3D is a simple and easy to use stage lighting scene simulation software! (2048 channel Chinese, a tutorial)

3. Support domestic lightingStudio professional lighting simulation software (need to own the official website to buy dongle)

Second: the output DMX signal function: software-controlled lighting lamps do show

1. Support "Maisi really love light console software", so the choice of sound and light synchronization! All Chinese! Chinese lighting software. (2048 channel, the Division and the true love wedding company based on field experience independent research and development, only available in the Division of equipment.) With a tutorial

2. Support FreeStyler X2 (1024 channels), Chinese / English support 3D, and with MIDI software to achieve the effect of music synchronization with a tutorial.

3. Support Pearl 2004 simulation software (output DMX signal control lamps); provide software

Third, support Resolume_Arena, Arkaos and other ART-NET function with VJ software, external physical console to trigger playback video;

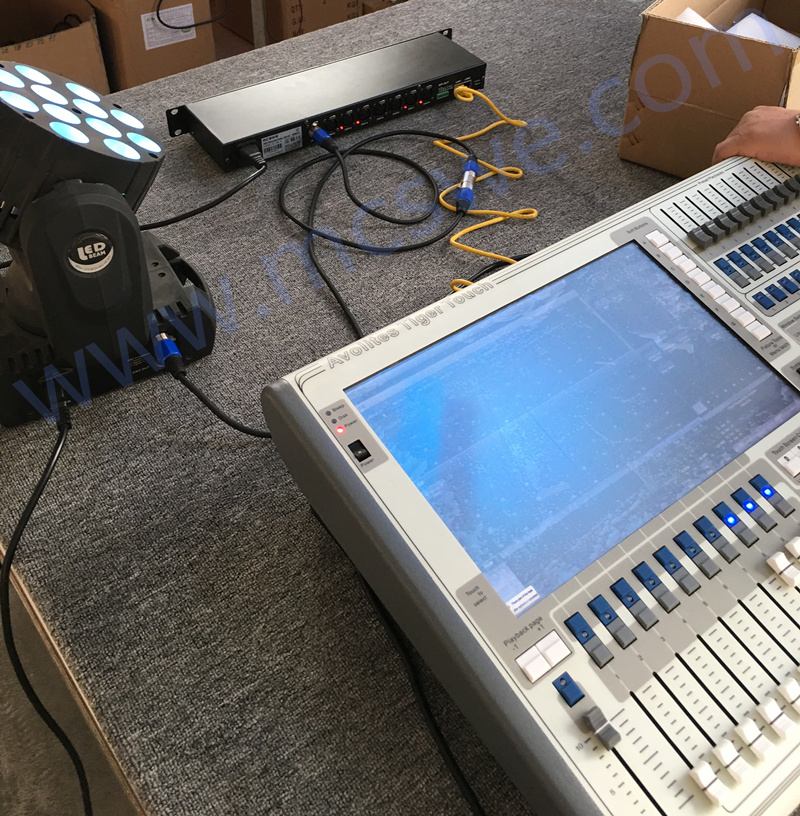

Support tiger touch, MA, flying pigs and other entities as an expansion console console, the output DMX signal.

 Support all software with ART-NET output / input function!

This is a multi-functional lighting software controller.

Art-Net turn DMX512 and DMX512 to Art-Net two-way transfer function!
It has two operating modes: node mode and server mode. By the panel switch to switch freely switch code!

Node mode through the network cable to receive ArtNet signal to convert it to DMX512 (8) signal;
The server mode converts the DMX512 (8-way) signal to an ArtNet signal and transmits it over a network cable.

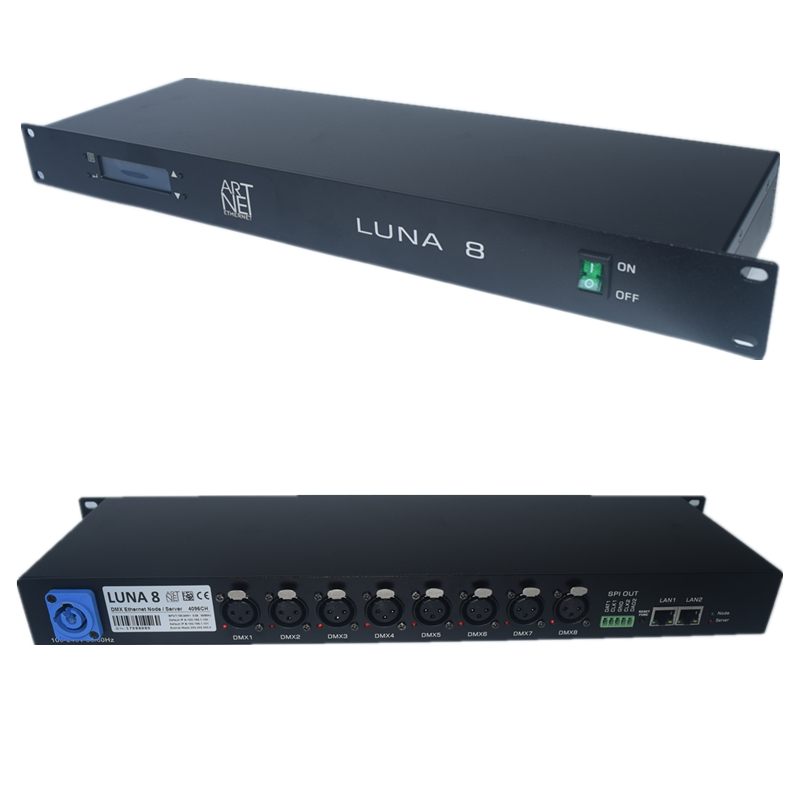

8 DMX domain ports, a total of 4096 channels. Absolute, PC_DIMMER, FreeStyler, pearl simulator, Tiger Touch simulator, the diamond 4 simulator, can be used for the MA console (full-function version of the need for USB-KEY), MADRIX (functionally welded LED point light source video screen playback software, Extended output, Magic Q and other lighting software directly output DMX-512 signal to control the lighting equipment (these software may have restrictions), can also be used as network lights console DMX output expansion device to use.

 TT software requires a U dog.

 Can be directly connected to the network cable and computer network card connection can also be connected through a router, wireless router connection can be used wireless notebook WIFI control, and if your cell phone / iPad ArtNet lighting software, you can not open the computer direct control! Very convenient.

At the same time support MAC Apple system software (such as MagicQ)!

As long as your software has Art-Net standard output / input function, you can use!

Product Features:

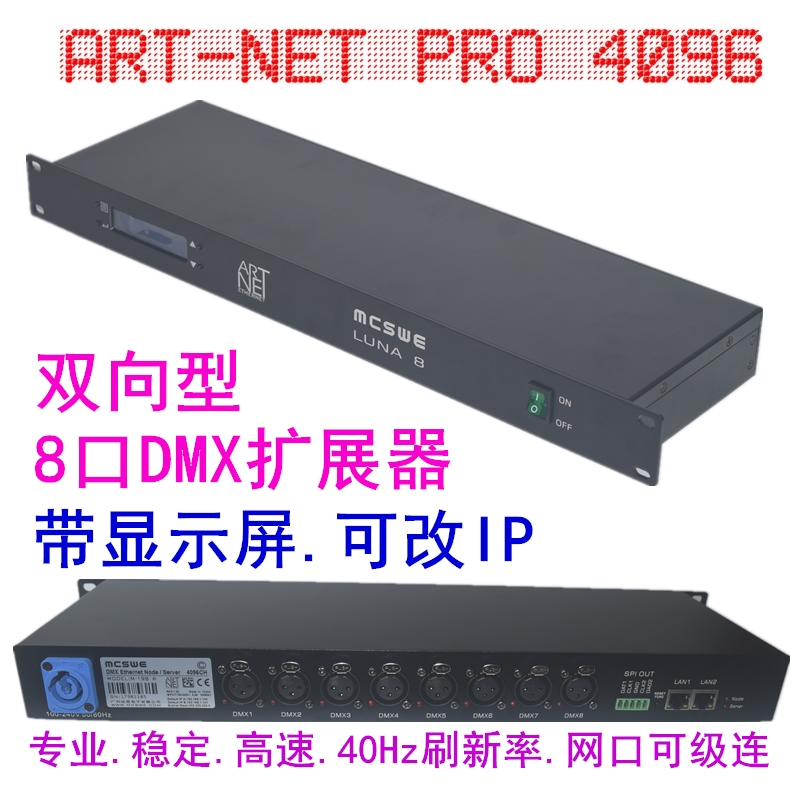

  4096 channel (8 DMX lines);
 32-bit ARM processor, built-in high-speed network processor chip, DMX signal optical isolation output / input;
  10 / 100M adaptive network port, IP and subnet mask can be modified;
Built-in switch chip, network cable can be connected with the level
A network cable can transmit up to 256 DMX lines (domains);
  After a lot of performances and practical applications, quality and stability, transmission without delay, the product DMX output / input refresh rate of 40Hz / S;
  Convenient, fast, professional, stable;
 Three months replacement products, three-year warranty.
Through CE certification, can be exported

  Packing List:
     1, M-198 controller one ();
     2, a power cord;
     3, presented a 1.5 m network cable;
   4, presented eight XLR adapter (turn 3-pin male, to facilitate your external console signal input)
     5, environmental protection packaging;
     Information and software to provide network disk to download or with CD-ROM, please message customer service, thank you.
          WYS R36 software a gift. (Only download the URL and set the connection tutorial, do not provide detailed tutorial on the use of the software Oh).

 Free Easy View 3D software Chinese, a tutorial
 Free gift Mai Sisi light console software (2048 channel) with a tutorial
 FreeStyler X2 1024 channel _V3.6.2 Chinese version of the software and video tutorial

  Factory IP: 192.168.1.100 / 101, subnet mask: 255.255.255.0; (in China to receive the goods can be used directly, without changing IP)
A variety of products:

* Output DMX signals, such as the use of MADRIX, MagicQ software;

* DMX signal input DMX light control console to control the computer's 3D lighting design software, such as pearl console connected Wysiywg, Ssunlite's Easy View 3D software;

With the receiver to carry out network DMX signal transmission, a network cable can transmit 256 DMX512 signal (DMX domain);

With the receiver bridge can be used for remote wireless DMX-512 signal transmission, transmission distance of up to a few kilometers;

With the receiver with a network fiber-optic converter can be long-distance fiber optic transmission DMX-512 signal;

* Network light console with the receiver can be used as console DMX output expander to use.

There are two kinds of XLR head output, 3 core and 5 core (shipping default is 3 core spot products, if you need 5 core XLR head, please make sure to communicate before shooting!)

 Note: This product is not included in the price of tax, excluding freight prices

The ART-NET network console, like a computer host, the hardware is taking the public agreement, some commercial software to buy and install to use, of course, some software is free to use.

Free Light Software List:
 Abuelites, PC_DIMMER, FreeStyler, MagicQ, DMXControl, DMatriX, Magic Easy 3D View, etc.
 Freestyler Chinese version of the X2, 1024 channels
 MagicQ is to support 2048 channel;
  DMatriX (similar to MADRIX software but features simple LED playback);

The following are commercial software:
Lighting Studio 2014, TT, MA, MADRIX
 MADRIX software itself can be downloaded free of charge in the official website, used to test the use is no problem. But users themselves to the official website to buy USB dongle to remove some time to turn off the output signal limit.

WYSIWYG (many of the foreign network free of charge available), to provide after the purchase site.

TT6.1
