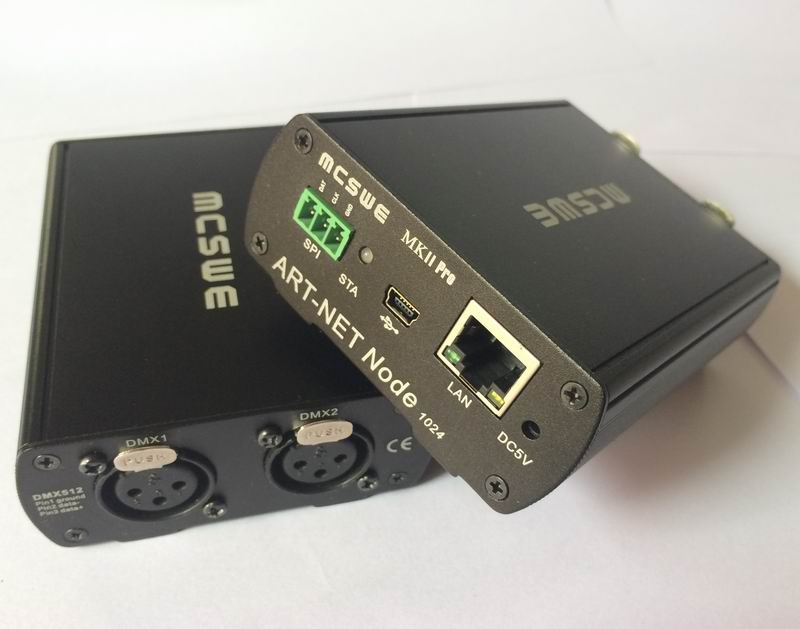

MCSWE ArtNet 1024

ArtNet DMX converter provides two-way network ArtNet to DMX512 serial bi-directional conversion capabilities , and can simultaneously output SPI signal directly drives the control of various types of point source . High-speed ARM processor , follow the standard ArtNet protocol provides a standard RJ45 network interface and DMX512 output interface. Suitable for occasions such as lighting dimmer control cabinet use . M-168-ArtNet1024 highly compatible protocol standard , real-time, has been the scene bulk taped for television , outdoor LED wall , stage background screen , stable and reliable .

Product Features

Artnet to DMX converter
DMX conversion to Artnet ( to be ordered through a dedicated set the software switches )

Follow ArtNet / ArtNetII agreement

Standard DMX512 signal output , 40Hz / S refresh rate

Provides configuration tools , user-friendly configuration parameters

With a network , serial transceivers instructions

Support for third-party software, such as MADRIX, DMXWorkshop etc.

Metal housing

Standard RJ45 network interface

Technical Parameters

Input voltage 5V DC

Operating current of less than 300mA

10/100M network interface , 1.5KV network isolation transformer

Network data transceiver instructions

DMX data transceiver instructions

Parameter protection switch

Operating Temperature 0 ~ 65 ℃

Storage temperature -25 ~ 85 ℃.

Product size : L105 Χ W80 Χ H35mm

Ordering Information
The product provides oem customized services, has partnered with a number of manufacturers

Can be directly output P9813, WS2801 ( need to buy the kind of message needs SPI output signal , if not a message by default WS2801 models ) control signal , a single point can take 340 RGB light sources .

The controller includes a host box , power one , giving a one meter cable (crossover or straight-through cables can be used ) ;

Line card can connect the network cable to the computer , you can also connect through a router , you can connect via a wireless router with a laptop wireless WIFI control , very convenient. The software also supports MAC system ! As long as your software Art-Net standard input / output functions , you can use !
